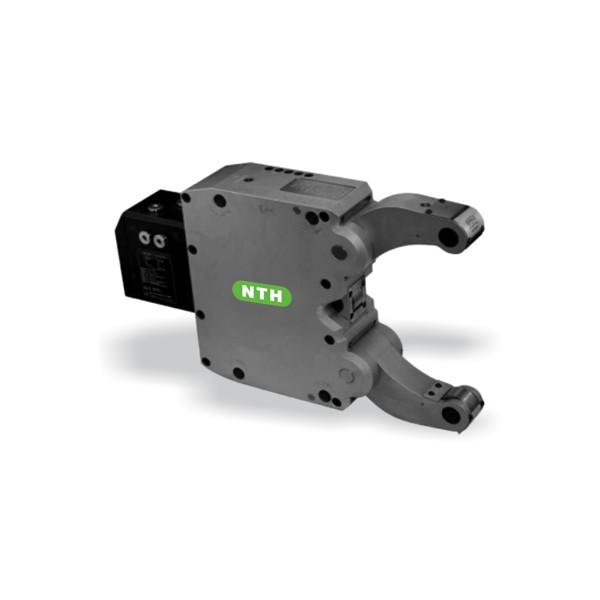

SELF CENTERING STEADY REST OMSR-C MODEL

Brand Name : NTH

Model Number : OMSR-C1,OMSR-C3

Place of Origin : CHINA

MOQ : 1set

Payment Terms : Western Union, T/T

Supply Ability : 1000sets/M

Delivery Time : 3 work days

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Product name : SELF CENTERING STEADY REST OMSR-C MODEL

Material : Cast steel

Usage : Fixture/Gripping/Prop up

Feature : Creative design,Wide clamping

Size : Refer to the specification

Service : Cylinders differing from standard available on request

Contact Now

SELF CENTERING STEADY REST OMSR-C MODEL
OPTION OF LUBRICATION
Manual lubrication: Low cost solution for medium working conditions and low swarf.
Central lubrication: For heavy working conditions and high build up of swarf
Central lubrication oil and air: For heaviest cutting conditions with high built up of swarf,dust or coolant
OPTION OF LUBRICATION
Omatei rollers (precision class P05) specially developed for our Steady Rests
Special sealing ensures highest precision and service life
Standard equipment: 1 set of cylindrical rollers
Option: Spherical rollers (for travelling Steady Rests)

NTH-OMSR Model Spec	OMSR-C1	OMSR-C3
D1 (mm)	340	650
D2 (mm)	660	910
D3 (mm)	670	916
D4 (mm)	130	130
D5 (mm)	27	27
L1 (mm)	270	390
L2 (mm)	360	450
L3 (mm)	335	530
L4 (mm)	210	220
L5 (mm)	935	1015
L6 (mm)	270	270
L7 (mm)	680	560
L8 (mm)	860	780
L9 (mm)	955	955
L10 (mm)	1000	1000
L11 (mm)	174	150
L12 (mm)	1109	1165
A1 (mm)	65	65
A2 (mm)	120	120
B1 (mm)	250	250
Work pressure Min./Max. (bar)	8/80	8/80
Max clamping force of the roller (daN)	8500	8500
Position accuracy within the clamping range (mm)	0.08	0.08
Repeatability accuracy (mm)	0.03	0.03
Max line speed of the roller (m/min)	560	560
Weight(KG)	974.8	895.8

Cylinders differing from standard available on request,Subject to technical changes
